Steel Pipe Elbow

Name: Steel Pipe Elbow
Brand: PIPELINE PRODUCTS
Price: 50 INR
Availability: InStock

50 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -20C to +400C
Sealing Type Metal-to-Metal Seal
Flexibility Rigid
Thread Type Not Threaded
Coating Type Zinc Coating
Tensile Strength 415 MPa
Bend Radius 1.5D
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Steel Pipe Elbow Price And Quantity

Minimum Order Quantity 50 , , Piece
Price 50 INR/Piece

Steel Pipe Elbow Product Specifications

Bend Radius 1.5D
Tensile Strength 415 MPa
Standard ASTM A234 / ASME B16.9
Product Type Steel Pipe Elbow
Application Water, Gas, Oil Pipelines
Yield Strength 240 MPa
Outer Diameter 50 mm
Diameter 50 mm
Tolerance 1 mm
Connection Type Butt Weld
Surface Treatment Galvanized
Length 100 mm
Rated Pressure PN16
Color Silver
Sealing Type Metal-to-Metal Seal
Temperature Range -20C to +400C
Connection Welded
Thread Type Not Threaded
Flexibility Rigid
Usage Plumbing, Industrial Piping
Thickness 3 mm
Coating Type Zinc Coating
Material Mild Steel
Material Grade A234 WPB
Shape Elbow (90 Degree)
Section Shape Round

Steel Pipe Elbow Trade Information

Supply Ability 1000 , , Piece Per Week
Delivery Time 2-5 Days

Product Description

Steel Pipe Elbow

All over the country, we have been supplying the best range of Steel Pipe Elbow which is highly demanded. Customers are in love by our brand because of the features of our product as well as its highly reasonable prices. Our company has a smart infrastructure that enables us to produce Steel Pipe Elbow in large quantity. Since the time we have entered the industry, our greatest achievement is to raise and maintain the highest quality standards. We still strive to offer improved solutions.

Engineered for Performance and Durability

This steel pipe elbow offers high impact resistance and excellent corrosion protection thanks to its galvanized finish and robust mild steel construction. Its precise manufacturing process ensures a close tolerance of 1 mm, making it suitable for applications demanding reliability and safety, such as industrial piping and plumbing systems.

Certified Quality and Standards Compliance

Fabricated according to ASTM A234 and ASME B16.9 standards, this elbow meets rigorous industry requirements. With a tensile strength of 415 MPa and a yield strength of 240 MPa, it is well-suited for demanding environments, including water, gas, and oil pipelines in sectors requiring dependable joint integrity and minimal leak risk.

FAQs of Steel Pipe Elbow:

Q: How is the steel pipe elbow manufactured to ensure high impact and corrosion resistance?

A: The steel pipe elbow is produced using the hot-formed method, which enhances its mechanical strength and impact resistance. It also receives a galvanized zinc coating, providing robust protection against corrosion in water, gas, and oil pipeline applications.

Q: What types of connections are compatible with this steel elbow, and is threading required?

A: This elbow features beveled ends specifically designed for butt-welded connections. It does not utilize threaded connections or require seals beyond its metal-to-metal sealing capability, ensuring a secure and leak-resistant joint.

Q: When should I use this steel pipe elbow, and for which applications is it suitable?

A: This elbow is intended for use in industrial and plumbing systems, particularly in water, gas, and oil pipeline installations. It operates efficiently under pressures up to PN16 and in temperature ranges from -20C to +400C, making it versatile for many environments.

Q: Where can the steel pipe elbow be installed, and what environments is it built for?

A: The elbow can be installed in both indoor and outdoor piping systems, including heavy industrial settings where reliability and corrosion resistance are crucial. Its galvanized coating and mild steel composition make it resilient in harsh weather and chemical-prone environments.

Q: What is the benefit of the 1.5D bend radius and how does it affect pipeline design?

A: The 1.5D bend radius allows smoother directional changes of flow with minimal turbulence, reducing pressure drop and wear on the system. This design is optimal for fluid efficiency and extends the lifespan of the piping network.

Q: How is the product packaged and transported to ensure safety?

A: Each steel pipe elbow is packaged in sturdy wooden boxes or cartons, protecting it from mechanical damage during storage and transport. This packaging meets industry standards for export and local supply, ensuring the product arrives in excellent condition.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Butt Weld Fittings' category

Black Mild Steel Bend Price : 66 INR/Piece Minimum Order Quantity : 50 Length : As required / Customizable Color : Black Connection : Other, Welded Material : Mild Steel Thickness : 3 mm Shape : Other, Curved/Elbow Section Shape : Round Standard : Other, IS 1239 / ASTM A234 Product Type : Other, Pipe Bend Outer Diameter : Up to 200 mm Surface Treatment : Other, Black Coated Tolerance : 0.5 mm Rated Pressure : Up to 16 bar Temperature Range : 20C to +400C Sealing Type : Welding Seal Flexibility : Rigid Thread Type : Not Threaded Usage : Industrial, Plumbing, Gas & Oil Pipeline Coating Type : Black Oxide Coating Material Grade : MS (Mild Steel) Bend Radius : Standard (1.5D, 3D Available) Tensile Strength : 350 MPa Min. Application : other, Pipeline Fittings Yield Strength : 240 MPa Min. Diameter : to 8 (inches) Connection Type : Butt Weld

Send Inquiry

Seamless Pipe Fitting Price : 68 INR/Piece Minimum Order Quantity : 50 Length : Customized / As per specification Color : Black / Silver / Grey Connection : Other, Welded, Threaded Material : Other , Carbon Steel / Stainless Steel Thickness : 2 mm 50 mm Shape : Other, Elbow, Tee, Reducer, Coupling, etc. Section Shape : Round Standard : Other, ASTM A234, ASTM A403, ANSI B16.9, DIN, JIS Product Type : Other, Seamless Pipe Fitting Outer Diameter : 1/2 48 (DN15 DN1200) Surface Treatment : Other, Black Painted, Pickled, Sand Blasted, Oiled Tolerance : 0.1 mm Rated Pressure : Sch10 to Sch160 / PN6 PN64 Temperature Range : 20C to 600C Sealing Type : Metaltometal Flexibility : Rigid Thread Type : NPT / BSP Usage : Oil & Gas, Petrochemical, Plumbing, Power Plants Coating Type : Anticorrosive coating Material Grade : ASTM A106 Gr.B / ASTM A234 WPB / ASTM A403 WP304, WP316 Bend Radius : 1.5D, 2D, 3D, Custom Tensile Strength : 415 MPa Application : other, Pipeline, Pressure Vessels, Water Treatment Yield Strength : 240 MPa Diameter : Up to 1219 mm Connection Type : Butt Weld / Socket Weld / Threaded

Send Inquiry

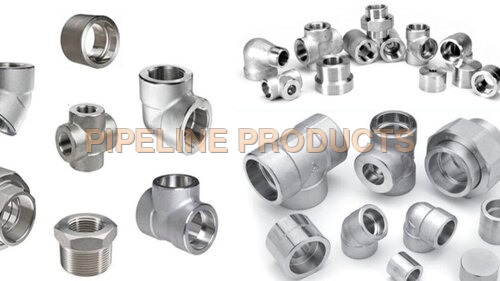

Welding Fittings Length : Standard / Custom as per order Color : Metallic Silver Connection : Other, Welded Material : Stainless Steel Thickness : Schedule 10, 20, 40, 80 (as specified) Shape : Other, Elbow, Tee, Reducer, Cap, Coupling (as per requirement) Section Shape : Round Standard : Other, ANSI B16.9 / ASTM A403 / DIN / JIS / EN Product Type : Other, Welding Fittings Outer Diameter : 1/2 to 24 (DN15 to DN600) Surface Treatment : Other, Polished / Pickled / Sand Blasted Tolerance : 0.01 mm Rated Pressure : Up to 6000 PSI Temperature Range : 30C to 450C Sealing Type : MetaltoMetal Flexibility : Rigid Thread Type : N/A (Welded Connection) Usage : Pipe Fitting, Industrial Piping Systems Coating Type : None / Custom on Request Material Grade : 304, 304L, 316, 316L, 321, 347, etc. Bend Radius : 1D, 1.5D, 2D, Custom Tensile Strength : 520 MPa Minimum Application : other, Oil & Gas, Petrochemical, Power Plant, Water Treatment Yield Strength : 205 MPa Minimum Diameter : 12 mm to 600 mm Connection Type : Butt Weld
